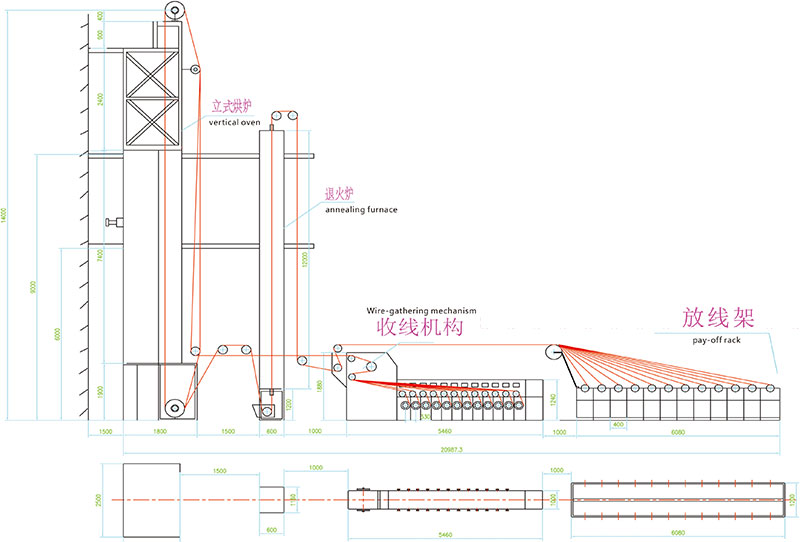

RX-QHL7400-18+18/6 Double Hearth Vertical Enamelling Machine with Heated Air Circulation
Main technical parameters:
Limits of wire gauge | Φ: 0.60mm-1.50mm | Pay-off method | Roll |
Number of wire | 36 (18+18) | Take-up method | Single shaft horizontal take-up |
Number of coating tracks | 6 | Coating method | Felt/Mould |
Distance between wires | 11.5mm | Supply voltage | 3X380V50HZ |
Range of wire speed | 0-50m/min | Total power | 300KW |
Take-up spool | PT15-PT25 | Daily power consumption | About 800kw.h |
Pay-off spool | Φ: 400mm-500 mm |
